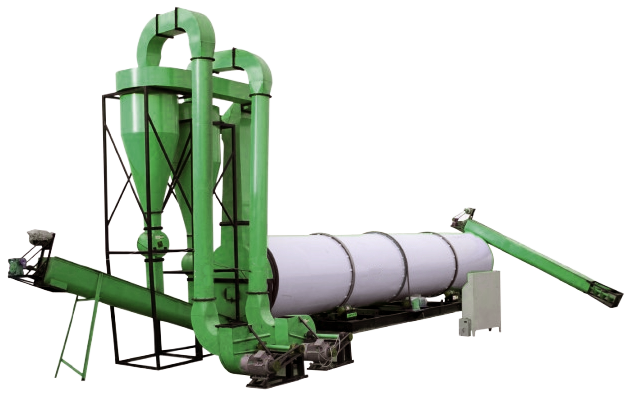

Rotary Drum Dryer
GTI Dryers is a leading Rotary Drum Dryer manufacturer in India, designing and manufacturing industrial rotary drying systems for continuous moisture removal from bulk solids across industries such as agriculture, food processing, chemicals, minerals, biomass, recycling, and industrial manufacturing.
A Rotary Drum Dryer is one of the most reliable and widely used drying technologies for large-scale industrial applications. It is designed to handle high throughput material flow while ensuring stable and efficient moisture reduction.
GTI rotary dryers are engineered to provide:
uniform drying performance
high production capacity
energy-efficient heat utilisation
robust industrial construction
continuous 24×7 operation
These dryers are suitable for materials such as grains, fertilizers, minerals, sand, wood chips, biomass, chemicals, and industrial powders, where large volumes of product must be dried consistently.
What is Rotary Drum Drying?
Rotary drum drying is a continuous thermal drying process used for removing moisture from bulk solids and granular materials.
In this system, wet material is introduced into a rotating cylindrical drum where it is lifted and cascaded through a stream of heated air. The repeated lifting action exposes the material to hot air, enabling efficient evaporation of moisture.
Inside the drum, specially designed lifting flights raise the product and allow it to fall through the hot gas stream. This cascading motion increases the contact between the material and the drying air, improving heat transfer and drying efficiency.
Rotary drum dryers are widely used because they offer:
reliable drying of large material volumes
strong tolerance for variable feed conditions
continuous operation with stable product output
This makes them one of the most practical drying solutions for industrial-scale moisture removal.
Working Principle of a Rotary Drum Dryer
At the core of a rotary drum dryer is the process of convective heat transfer combined with material cascading, where wet solids are exposed to a stream of hot air while moving through a rotating drum.
Wet material is fed into one end of the rotating drum through a feed chute. As the drum rotates at a controlled speed, internal lifting flights raise the material and shower it through the flowing hot air stream.
The hot air passes through the drum in either co-current or counter-current flow, allowing heat to transfer rapidly to the product. As the material repeatedly cascades through the hot air, moisture evaporates and is carried away by the exhaust gas.
The combination of continuous rotation, cascading material movement, and controlled airflow ensures efficient drying while preventing product accumulation inside the drum.
Dried material gradually moves toward the outlet and is discharged continuously, while the moisture-laden exhaust air exits through the dust collection system.
Advantages of Rotary Drum Dryer Technology
Industrial rotary drum dryers are designed for high-capacity continuous drying across a wide range of industries.
Key Benefits
High drying capacity suitable for large-scale industrial production
- Efficient moisture removal through cascading material exposure to hot air
- Handles a wide range of materials including powders, granules, chips, and bulk solids
- Continuous operation enabling stable production with minimal downtime
- Robust mechanical design ensuring long service life in demanding environments
- Energy-efficient operation with optimized airflow and heat transfer design
- Flexible process control through adjustable airflow, temperature, and drum speed
- Adaptable for different feed moisture levels and material characteristics
- Low maintenance requirements due to simple and durable equipment construction
- Compatible with dust collection systems for clean and environmentally compliant operation
Rotary Drum Dryer Applications
Rotary drum dryers are widely used across industries where large volumes of materials require continuous moisture reduction.
Food Processing
coffee beans
tea leaves
fruit and vegetable dehydration (industrial scale)
food pulp and residues
Agriculture
corn, wheat, soybean and grains
crop residues
agricultural by-products
Wood & Biomass
wood chips
sawdust
bagasse
straw
biomass fuel materials
Mineral Processing
ores and mineral concentrates
sand
potash
limestone
industrial minerals
Chemical Industry
fertilizers
chemical powders and granules
salts and industrial intermediates
Recycling & Waste Processing
plastic flakes
paper sludge
industrial waste materials
recycling feedstock
Main Components of a Rotary Drum Dryer System
Rotary drying drum with internal lifting flights
Hot air generator or burner system
Feed chute and inlet material handling system
Drum drive unit with motor and gearbox
Support rollers and trunnion assemblies
Exhaust air fan and ducting system
Dust collection equipment (cyclone, bag filter, or scrubber)
Control panel with temperature and airflow monitoring
Each component plays a critical role in achieving efficient drying, stable material flow, and consistent product quality.
Efficient rotary dryer operation depends on several important process variables.
Inlet Air Temperature
The temperature of the hot air determines the drying rate and energy efficiency.
Drum Rotation Speed
Proper drum speed ensures effective cascading of material and uniform drying.
Residence Time
The time material remains inside the drum determines the final moisture content.
Airflow Rate
Controlled airflow ensures proper moisture removal and heat transfer.
Feed Moisture Content
Initial moisture level affects the required heat load and drying capacity.
Flight Design
The internal lifting flights determine material distribution and drying efficiency.
In many industrial processes, drying plays an important role in determining the final physical properties of the material.
Rotary drying systems can influence:
particle moisture distribution
product bulk density
flowability and handling properties
agglomeration behaviour
Optimised drum design and airflow conditions ensure uniform drying without excessive product degradation.
GTI rotary dryers can be engineered for a wide range of materials and industrial requirements.
Airflow Configuration
co-current airflow
counter-current airflow
Drum Design
single pass drum
multi-pass rotary dryer
Heating Options
direct-fired hot air generator
steam heating system
thermic fluid heating
Construction Materials
mild steel
stainless steel (SS304 / SS316)
abrasion-resistant liners for mineral processing
Process Enhancements
automatic temperature control
heat recovery systems
integrated dust collection
pollution control equipment
GTI Dryers specialises in the design and manufacturing of industrial drying equipment for demanding process applications.
Engineering Expertise
Over 40 years of industrial engineering experience in drying and processing equipment.
Custom Engineered Solutions
Each rotary dryer is designed based on material properties, capacity requirements, and plant layout.
Heavy-Duty Industrial Construction
Built for continuous operation in harsh industrial environments.
Energy Efficient Design
Optimised drum geometry and airflow systems reduce energy consumption per ton of product.
Reliable After-Sales Support
Complete support for installation, commissioning, and spare parts supply.
If you are planning a rotary drum drying system for bulk material processing, our engineering team can assist with selecting the most suitable equipment configuration.
We provide:
material drying evaluation
capacity and heat load calculations
equipment layout planning
technical specifications and quotation
Contact us today for Rotary Drum Dryer price and technical consultation.
📩 Email: mktg@foodtechprojects.com
